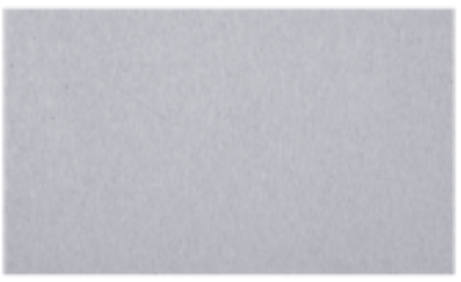

- WATER SOLUBLE ALUMINUM SHEET
PRODUCT PARAMETERS Unit (mm)
|
MODEL |
AL-THICKNESS |
COATING- THICKNESS |
THICKNESS |
STANDARD SIZE |
APPLY PCB TYPE |
|
HYH-SL018 |
0.13±10% |
0.05±0.01 |
0.18±10% |
Can be cut according to customer requirements.
|
HDI, automobile board, communication board, etc |
|
HYH-SL015 |
0.10±10%
|
0.05±0.01 |
0.15±10% |
Can be cut according to customer requirements.
|
Ordinary multilayer, HDI, etc |
|
HYH-SL011
|
0.06±10%
|
0.05±0.01
|
0.11±10%
|
Can be cut according to customer requirements.
|
IC carrier, etc |
PRODUCT ADVANTAGES:
①Effectively improve the quality of hole wall.
②Good heat dissipation and lubricity.
③It can provide the positioning and guidance function during the process of drilling needle running down, and improve the
accuracy of drilling hole position.
④With good heat conduction function, it can quickly dissipate
the heat generated by friction when the drill bit is running down at high speed, effectively prevent the drill bit from overheating and reduce the wear of the drill needle, so as to improve the service life of the drill needle and reduce the rate of needle breakage.
METHOD OF USE & STORAGE CONDITIONS:
①When used, the lubrication layer surface is facing up, the aluminum sheet is facing down, and it is pasted above the production board. The first contact surface of the drill needle is the lubrication layer.
②The drill needs to reserve a chip removal space of 10% to 20% of the effective edge length.
③Each package shall be used up as soon as possible within 48 hours after opening. If it cannot be used
up, please repackage it for storage.
④When using, do not touch items containing water or water solvent to prevent the damage to the lubricating layer and affect the quality.
⑤Placed horizontally, the storage period of the original packaging is six months, the temperature is 23±5℃, and the humidity is ≤65%.
