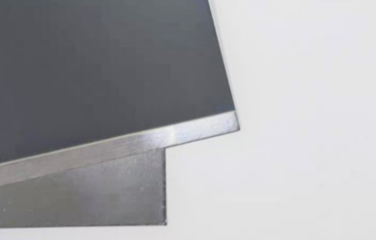

- High Performance Backdrill Aluminium Sheet
★ PRODUCT STRUCURE:
Special resin layer, Aluminum sheet
★ SUIT FOR:
1.Suitable for drill-bit with diameters ranging from 0.4 to 6.35mm
2.Can be customized according to the different needs of customers
3. Replacement of traditional back drill production technology
★ ADVANTAGES:
1. The product surface flatness and hardness is higher, which is helpful for excluding powder and cutting
2. The product has strong binding force
3.The overall thickness is thinner, which reduces the drilling path of the drill-bit, improves the production efficiency and the life of the drill-bit
4. High recovery value, can effectively save costs
5. Margin design for easy operation and time saving.
| Model | Coating-Thickness | Al-Thickness | Thickness | Standard Size | |||||
| HB03A16G | 0.03mm±10% | 0.16mm±10% | 0.19mm±10% | 37"x49"; 41"x49"; 43"x 49" | |||||
| HB03A12G | 0.03mm±10% | 0.12mm±10% | 0.15mm±10% | 37"x49"; 41"x49"; 43"x 49" |
