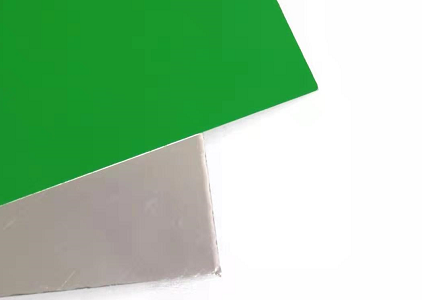

- Coated Aluminium sheet
PRODUCT STRUCURE:
Resin coating, Aluminum material
SUIT FOR
1. Suitable for 0.075-0.30mm micro drill-bit
2. Effectively improve the hole position accuracy, reduce the drill-bit abrasion and hole roughness; Reduce drill-bit breakage;
3. Recommended for high multi-layer board, high reliability board and increasing the drilling stack (Drill-bit with long effective blade)
4.Storage is convenient, to room temperature preservation
★ ADVANTAGES:
The soft property of resin makes the drill-bit stably and positioned at the moment of drilling contact, avoiding the slippage of the tip. At the same time, thicker resin layer forms casing effect and reduces deviation of the drill-bit, makes it "straight" down, so as to improve the accuracy of hole position and reduce the drill-bit breakage.
| Model | Coating-Thickness | Al-Thickness | Thickness | Standard Size | |||||
| HT06A13 | 0.06mm±10% | 0.13mm±10% | 0.19mm±10% | 37"x49"; 41"x49"; 43"x 49" | |||||
| HT04A10 | 0.04mm±10% | 0.10mm±10% | 0.14mm±10% | 37"x49"; 41"x49"; 43"x 49" | |||||
| HT05A05 | 0.05mm±10% | 0.05mm±10% | 0.10mm±10% | 37"x49"; 41"x49"; 43"x 49" |
