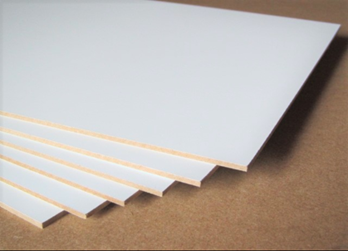

- Melamine Backup
★ PRODUCT STRUCURE:
Coating,Density Plate,Coating
★ SUIT FOR:
Suitable for high-end drilling
Product Info
★ FEATURES:
1.There are three main processes for surface coating: water-solubility, UV resin and hot pressure mode (LPM)
2.Can effectively improve the quality of the hole wall
3.Can effectively reduce the rate of broken drill bit
4.The surface is smooth without bump
| Model | Surface process | Thickness | Density | Hardness | Standard Size | |||||
| HMH200H | water solubility | 2.0mm | ≥850kg/m³ | HD-75±5 | 37"x49"; 41"x49"; 43"x 49" | |||||
| HME250U | UV resin | 2.5mm | ≥850kg/m³ | HD-75±5 | 37"x49"; 41"x49"; 43"x 49" | |||||
| HMM200L | Hot pressure mode (LPM) | 2.0mm | ≥830kg/m³ | HD-80±5 | 37"x49"; 41"x49"; 43"x 49" | |||||
